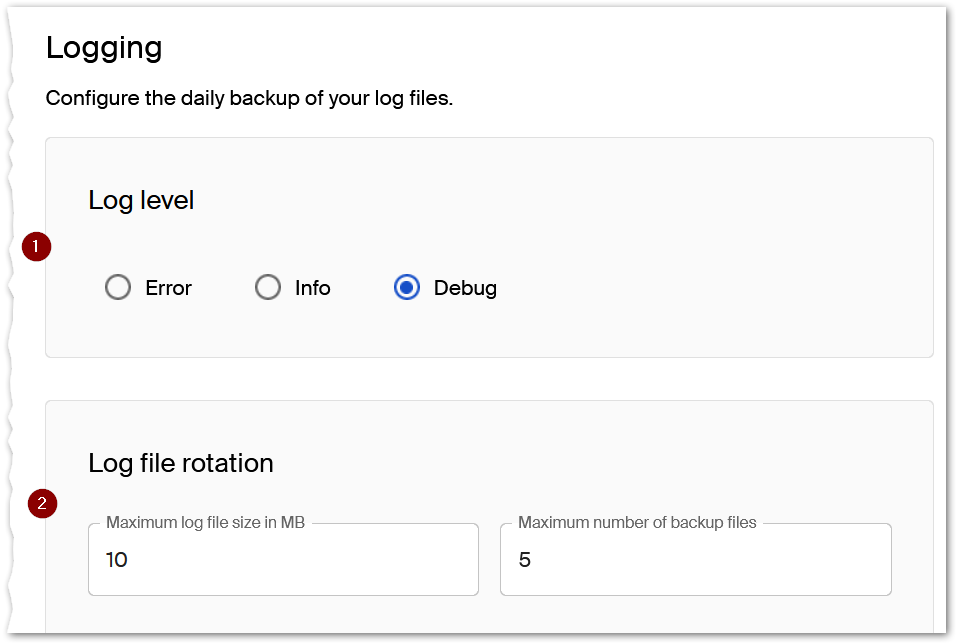

Logging
 |
|
| 1 |
Choose extent of diagnostic files |
| |
In addition to SCG software components, the log level affects the OpenVPN logs (from SCG 1 2103) |
| 2 |
Configure thresholds for log rotation |
| |
To download the diagnostic files, use the Info dialog. |
Log level
(up to SCG 1 2101 under SCG cluster)
- Choose the extent to which log and configuration files are retrieved and downloaded when you request the Diagnostic files.
| |
|
| Error |
Only error messages |
| Info |
Error messages and additional information (default) |
| Debug |
Log files with extended content |
The log files are stored under /opt/unicon/scg/logs
If you are running a cluster of multiple SCG instances, you only need to set the log level on one instance: the setting is automatically applied to the other instances. A restart for activation is not required.
Log rotation
(from SCG 1.2103)
Especially for log level Debug the amount of data increases quickly. Rotating the log files keeps the storage demand low. For each log file, the number of backup files and the size is limited. When the threshold values are reached, the files are rotated: A new file is created and the oldest backup file is deleted.
Log rotation is active by default and is automatically executed once per day.
The threshold values can be configured as follows:
| Option |
Default |
Value range |
| Maximum log file size in MB |
10 |
10-100 |
| Maximum number of backup files |
5 |
5-10 |
The configured values are saved to the file logrotate.conf. This file and all rotated files in /opt/unicon/scg/logs are part of the Diagnostic files.
For further information, see Downloading diagnostic files.
