Filter data to troubleshoot failures
When you click numbers on the Dashboard or select a predefined Default filter from the Filters tab, the Filters view opens to display data based on the selected machine or failure type.
You can create custom-filtered views of machines, connections, sessions, and application instances across all delivery groups and save the search for later access. You can edit a predefined filter and save it as a Saved filter.
-
Select a view:
- Machines. Select Single session OS Machines or Multi-session OS Machines. These views show the number of configured machines. The Multi-session OS Machines tab also includes the load evaluator index, which indicates the distribution of performance counters and tool tips of the session count if you hover over the link.

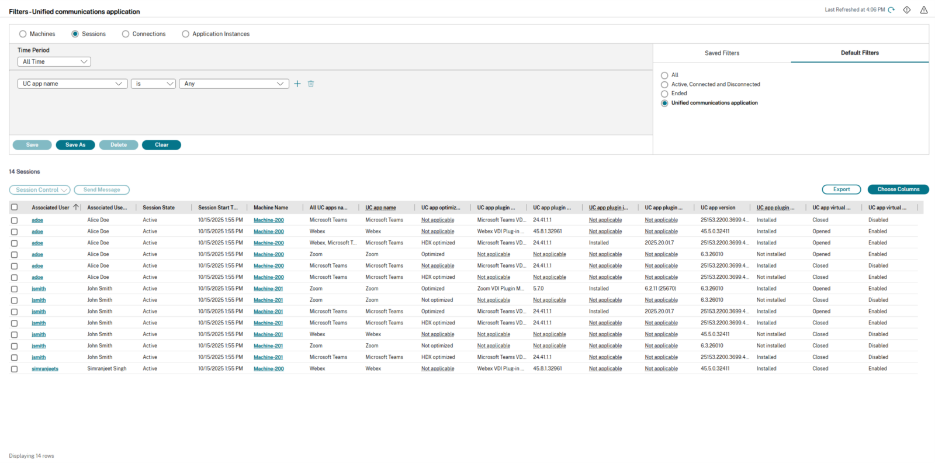

- Sessions. You can also see the session count from the Sessions view. Use the idle time measurements to identify sessions that are idle beyond a threshold time period. Click the Associated User to open the Activity Manager for the user. Clicking the Endpoint name opens the Activity Manager for the Endpoint. Clicking View Details opens the User Details or Endpoint Details page respectively. For more information, see User Details.
- Connections. Filter connections by different time periods, including last 60 minutes, last 24 hours, or last 7 days. Click the Associated User to open the Activity Manager for the user. Clicking the Endpoint name opens the Activity Manager for the Endpoint. Clicking Machine Names opens the Machine Details page. The Machine Details page lists the machine details, machine utilization, infrastructure details, and applied hotfixes. For more information, see Troubleshoot Machines.
- Application Instances. This view displays the properties of all application instances on VDAs of Multi-session and Single session OS. The session idle time measurements are available for Application instances on VDAs of Multi-session OS.
- Select a filter from the list of Saved or Default filters.
- Use the drop-down lists to select further filter criteria.

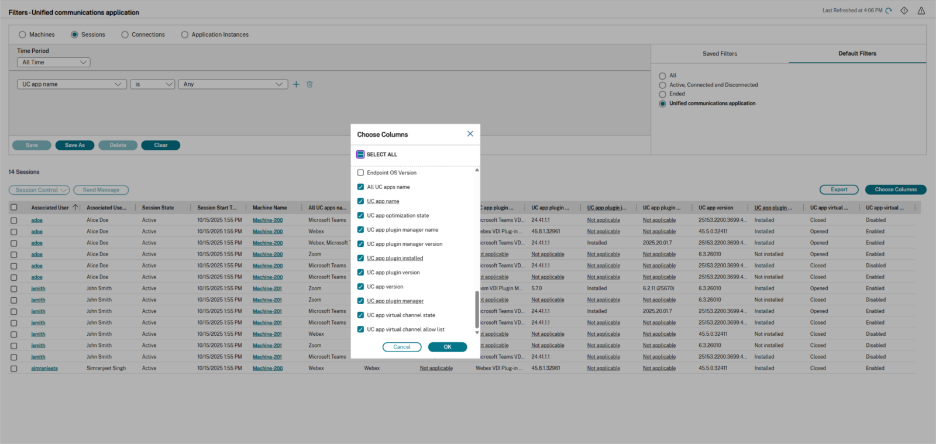

- Select extra columns, as needed, to troubleshoot further.
- Save and name your filter.
- To open the filter later, from the Filters view, select View (Machines, Sessions, Connections, or Application Instances), and select the saved filter.
- Click Export to export the data to CSV format files. Data of up to 100,000 records can be exported.
- If needed, for Machines or Connections views, use power controls for all the machines you select in the filtered list. For the Sessions view, use the session controls or option to send messages.
- In the Machines and Connections views, click the Failure Reason of a failed machine or connection to get a detailed description of the failure and actions recommended to troubleshoot the failure. The failure reasons and the recommended actions for Machine and Connection failures are available in the Citrix Director Failure Reasons Troubleshooting Guide.
- In the Machines view, click a machine name link to go to the corresponding Machine Details page. This page displays the details of the machine, provides power controls, displays the CPU, memory, disk monitoring, and GPU monitoring graphs. Also, click View Historical Utilization to see the resource utilization trends for the machine. For more information, see Troubleshoot machines.
- In the Application Instances view, sort or filter based on Idle Time greater than a threshold time period. Select the idle application instances to end. Log off or Disconnect of an application instance ends all active application instances in the same session. For more information, see Troubleshoot applications. The Application Instances filter page and idle time measurements in the Sessions filter pages are available if VDAs are version 7.13 or later.
Note:
Studio allows assignment of multiple Desktop Assignment Rules (DAR) for different users or user groups to a single VDA in the delivery group. StoreFront displays the assigned desktop with the corresponding Display Name as per the DAR for the logged in user. However, Monitor does not support DARs and displays the assigned desktop using the delivery group name regardless of the logged in user. As a result, you cannot map a specific desktop to a machine in Monitor. To map the assigned desktop displayed in StoreFront to the delivery group name displayed in Monitor, use the following PowerShell command. Run the PowerShell command using Remote PowerShell SDK as described in the blog.
Get-BrokerDesktopGroup | Where-Object { $\_.Uid -eq (Get-BrokerAssignmentPolicyRule | Where-Object { $\_.PublishedName -eq "\<Name on StoreFront\>" }).DesktopGroupUid } | Select-Object -Property Name, Uid
<!--NeedCopy-->
