Dashboard
(from SCG 1 2209)
In the SCG Dashboard, various widgets show the most important key figures and key performance indicators so that you can get an overview of the entire infrastructure at any time.

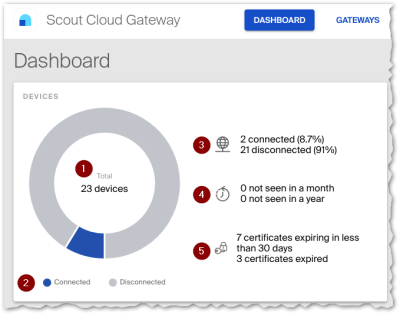

Devices
| 1 | Total number of all connected devices |
| 2 | Currently connected and disconnected devices |
| 3 | Number of connected and disconnected devices |
| 4 | Devices that have not been connected for at least one month / at least one year |
| 5 | Devices whose device certificate has expired / will soon expire |

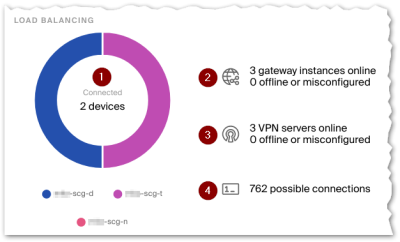

Load Balancing
| 1 | Total number of all connected devices with current distribution to instances |
| 2 | Number of gateway instances that are currently online, offline, or not configured |
| Unconfigured gateway instances can be freshly installed instances or disabled instances. | |
| 3 | Number of VPN servers on the gateway instances that are currently online, offline, or not configured |
| If a VPN server is not configured, Configuration > Gateways > Gateway-specific configuration is missing. | |
| 4 | Total number of possible device connections |
| with display of instances that have only a few free IP addresses left |
Performance
Average CPU and RAM usage, as well as memory across instances.
The instance with the highest values is displayed.

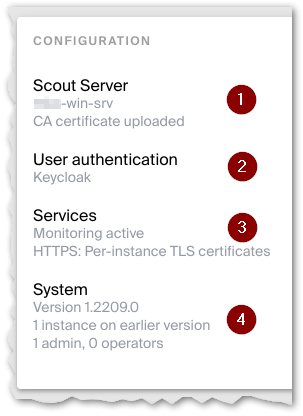

Configuration
 |
|
|---|---|
| 1 | Name of the current [Scout Server]. CA certificate or self-signed certificate that ensures secure communication between SCG and devices see Configuration > Server device settings |
| 2 | Selected Identity provider. For SCG authentication additionally number of token see Configuration > User authentication |
| 3 | Health check service active or inactive.Web server configuration see Configuration > Monitoring and Configuration > Gateways |
| 4 | Latest SCG version in the cluster |
| Number of instances that are on earlier version | |
| Number of SCG administrators with roles see Configuration > SCG administrators |

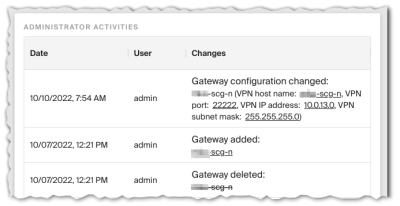

Administrator activities
Various activities are logged, including configuration value changes and adding/changing/deleting gateway instances.
The old values are crossed out, the new ones are underlined.
