Monitoring

Last published : Oct 16, 2026
(from SCG 1 2107)
The health check service allows administrators to check and monitor the availability and performance of an SCG instance and its internal components (backend, controller, Mongo controller, OpenVPN...) A health check request provides the overall status and the status of individual services as a result.
By default, the service is not active, but must first be started under Monitoring > Health check.
The health check is initially secured via an automatically generated token.

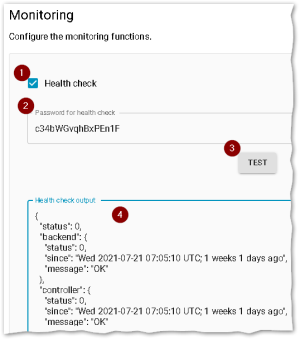

Health Check
1 Activate health check
2 Optional: Define individual password
3 First save configuration, then click for a test request
4 Output: Overall status and status of each component
Upon request, the system generates status information in format on all relevant components.
  • Status 0 means: No errors.
  • If the overall status is 0, all components are running.
  • The time stamp specifies from when a component is up / down.
Related information
Gateway configuration in the SCG WebAdmin interface

Calling the health check service

For a call, an HTTP GET is executed on the health check URL with the configured token given with it.
Example with curl:
curl 'https://<SCG URL>/healthcheck' -H 'Connection: keep-alive' -H 'Authorization: Bearer <token>' -H 'Accept: application/json, text/plain' --insecure
The following parameters are used:
Parameter Description
<SCG URL> URL of your Scout Cloud Gateway
<token> Token or password as defined in the SCG WebAdmin Interface under Configuration > Monitoring
--insecure Needs to be specified if you use a Self-Signed certificate
For example, if Open VPN is not running, the result is as follows:
{
  "status": 1,
  "backend": {
    "status": 0,
    "since": "Tue 2021-10-19 12:21:24 UTC; 1 weeks 2 days ago",
    "message": "OK"
  },
  "controller": {
    "status": 0,
    "since": "Tue 2021-10-19 13:30:21 UTC; 1 weeks 2 days ago",
    "message": "OK"
  },
  "mongod": {
    "status": 0,
    "since": "Tue 2021-10-19 12:20:58 UTC; 1 weeks 2 days ago",
    "message": "OK"
  },
  "nginx": {
    "status": 0,
    "since": "Tue 2021-10-19 12:20:56 UTC; 1 weeks 2 days ago",
    "message": "OK"
  },
  "openvpn": {
    "status": 3,
    "since": "Wed 2021-10-20 07:08:52 UTC; 1 weeks 1 days ago",
    "message": "ERROR"
  }
}
