Component Analyzer

Last published : Nov 05, 2026
Component Analyzer is a web-based tool that performs the configuration checks required for a Citrix SecurAccess™ ZTNA hybrid setup. After uploading the necessary reports, the Analyzer identifies issues with detailed error messages and explanations, including examples of detected StoreFront configuration errors. The tool also lists potential remediations to resolve the identified problems.
You must re-run the Analyzer after applying remediations to confirm that all configuration checks pass.

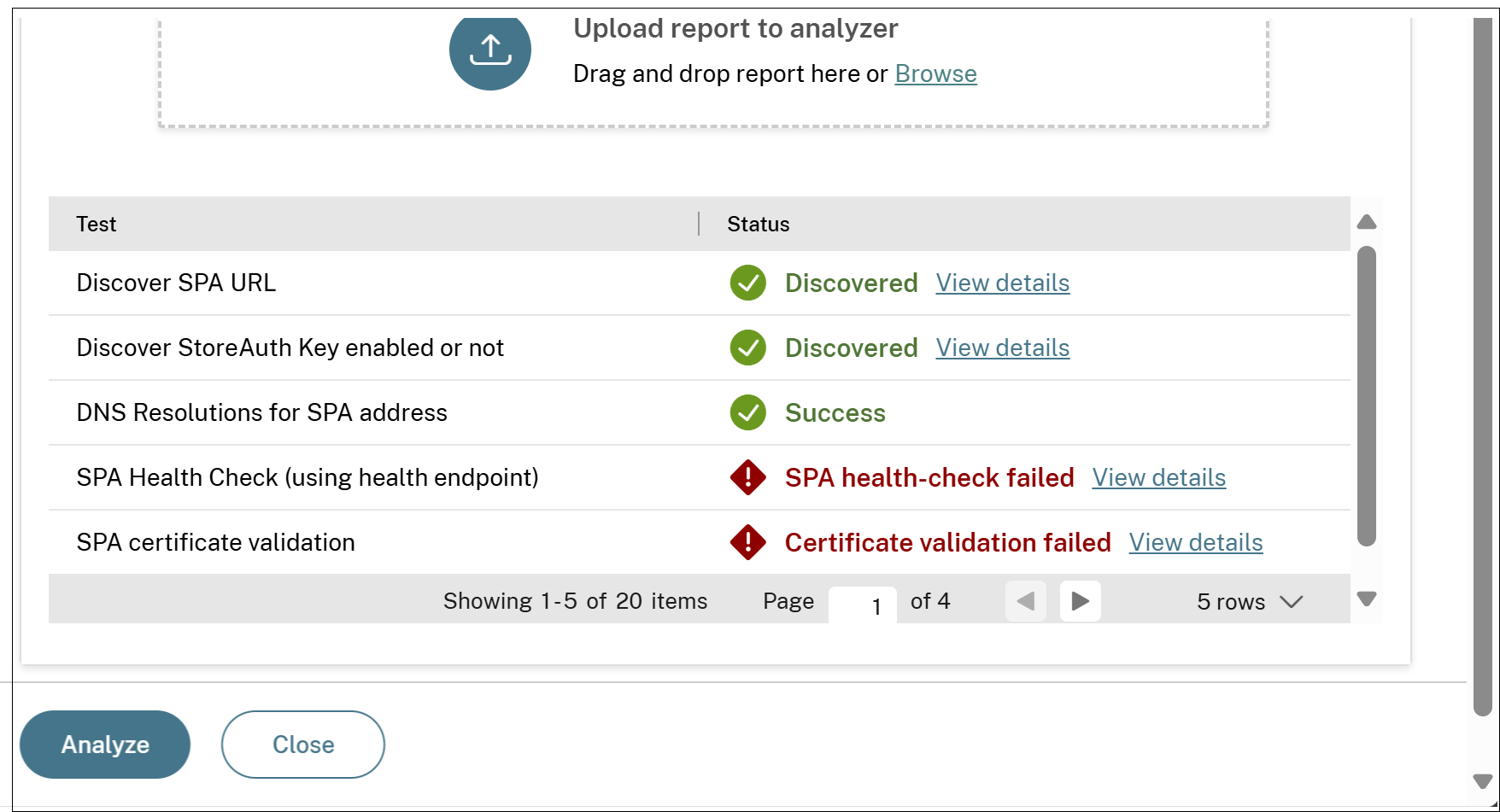

Example of a detected StoreFront configuration error.

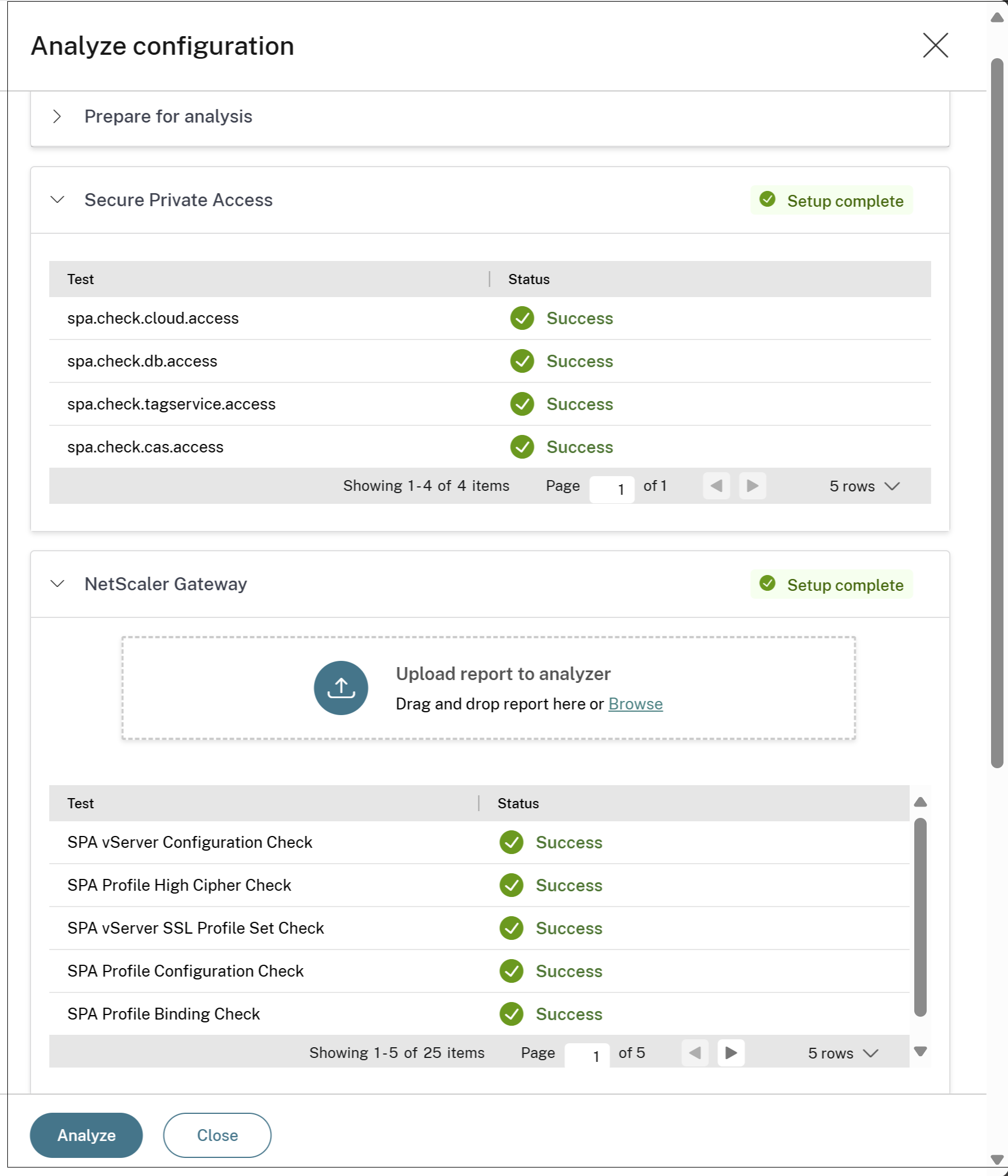

Analyzer - pass
If there are no errors, the Analyzer displays successful results for all checks.
Analyzer-fails

Citrix SecurAccess ZTNA Analyzer

The Citrix SecurAccess ZTNA Analyzer evaluates the readiness and reachability of key Citrix Cloud components required for Citrix SecurAccess ZTNA deployment. Without the need for report uploads, it automatically checks connectivity to essential services such as Cloud Access, database services, and other required internal services.
By verifying each component’s accessibility and operational status, the tool helps administrators quickly identify network or configuration issues, ensuring that all Citrix Cloud dependencies are available and properly functioning for Citrix SecurAccess ZTNA integration.

NetScaler Gateway Analyzer

NetScaler Gateway Analyzer streamlines Citrix SecurAccess ZTNA deployments by automating key tasks and highlighting configuration issues. It performs targeted checks and validations, producing actionable diagnostics that enhance reliability and performance while reducing manual effort and configuration risk.
The NetScaler Gateway Analyzer capabilities include:
  • Configuration: Automatic or interactive setup of the NetScaler Gateway component.
  • Analysis: Assessment of connectivity, compliance, and operational health across Citrix SecurAccess ZTNA components.
  • Cleanup: Removal of Citrix SecurAccess ZTNA configurations when required.
Each capability is invoked via dedicated command line options (see README.txt), supporting flexible lifecycle management from initial rollout through maintenance to controlled teardown.
The execution generates timestamped artifacts containing structured logs and analysis summaries. Outputs cover configuration state, connectivity test results, discovered component metadata, and identified issues. Cleanup operations provide confirmation of entity removal to ensure a clean state. All results are delivered in a structured JSON format suitable for automation, integration, and audit.
See Step 3: Configure and analyze to download and run the script on NetScaler.

StoreFront Analyzer

StoreFront Analyzer streamlines Citrix SecurAccess ZTNA readiness checks for Citrix StoreFront by automating discovery and validation tasks. It performs targeted assessments of configuration, connectivity, authentication, and certificates, producing actionable diagnostics that improve reliability while reducing manual effort and configuration risk.
The StoreFront Analyzer capabilities include:
  • Analysis: Read-only evaluation of StoreFront configuration, network reachability, authentication settings, remote access parameters, and certificate validity relevant to Citrix SecurAccess ZTNA compatibility.
The execution produces timestamped artifacts with structured logs and analysis summaries. Outputs include Citrix SecurAccess ZTNA URL discovery, StoreAuth key status, DNS resolution results, health endpoint accessibility, SSL certificate validation, and discovered component metadata. All results are delivered in a structured JSON format suitable for automation, integration, and audit.
No configuration changes are made. The analyzer operates in read-only mode.
See Step 3: Configure and analyze to download and run the script on NetScaler.
